The brief introduction of Commercial Hot Water Solution

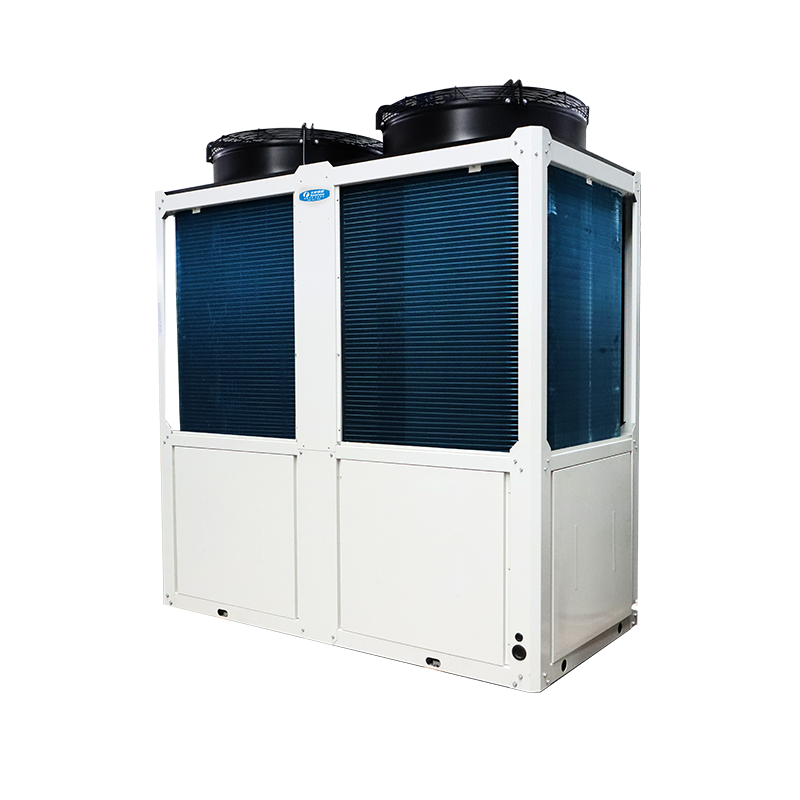

This commercial air-source hot water heat pump is a highly efficient hot water supply machine specifically designed for commercial applications such as hotels, schools, hospitals and gyms. Depending on an extra-large heat pump system and intelligent water circulation technology, this system settles traditional commercial hot water equipment's defects,such as high energy consumption and unstable supply and coming true the core functions of "big capacity and rapid water production + stable and constant temperature delivery + low-energy and high-efficiency operation”.
Product Advantages: Four Core Highlights
1. Highly efficient and energy-saving to reduce costs by 50%
Low energy consumption and high output
Take advantage of the remaining heat recycle
2. Stable and reliable to provide ongoing 24/7 supply
Different temperature applied
Large capacity and continuous output
3. Safe and environmentally friendly to meet commercial compliance requirements
0 safety risks
Environmentally friendly
4. Intelligent and convenient to rise management efficiency by 80%
Remote intelligent control
Data-driven operations
Easy-maintenance design
Application Scenes: Covering All Industries and Meeting Diverse Commercial Requirements
1. Hotels/Home-stays: Improve the customers’ experience
Application scenes: Hotels, home-stays and resorts with 50-500 rooms
2. Schools/Hospitals: Ensure centralizedly safe water supply
Application scenes: Primary and secondary schools, university dormitories, comprehensive hospitals and community hospitals
3. Gyms/Swimming Pools: Meet high-frequency water usage requirements
4. Factories/Enterprises: Reduce workers’ welfare costs
Application scenes: Large factory’s dormitories and office buildings
The durability of commercial equipment directly determines the user's investment profit period. TENESUN commercial water heaters heat pump has focused on the long-term stable operation in material selection and structural design. In terms of system protection, the facilities are equipped with multiple safety protection devices: high-pressure protection, low-pressure protection, over-temperature protection, water flow protection, leakage protection and other 12 kinds of protection functions. They can monitor the operating status in real time, immediately shutting down and sending alarms in the event of any abnormality, minimizing the risk of equipment damage. The facility’s shell adopts cold-rolled steel plate with a powder coating craft, possessing resistance to ultraviolet rays and acid rain corrosion, allowing for a long-term stable operation in the hot and humid tropical regions or high-salt-fog coastal areas.
Third-party testing data is shown that TENESUN commercial water heaters heat pumps have a average time without breakdowns (MTBF) beyond 8000 hours and a service life beyond 20 years, extending the lifespan by more than 5 years compared to similar products in the industry. Taking a 20-ton pump as an example, the initial investment is about $80,000. Based on a 15-year service life, the average annual depreciation cost is only $5,300.But the service life of a traditional gas-fired water heater is about 8 years, with an average annual depreciation cost of $7,500. The long-term usage advantages are very significant.
The brief introduction of Commercial Hot Water Solution
This commercial air-source hot water heat pump is a highly efficient hot water supply machine specifically designed for commercial applications such as hotels, schools, hospitals and gyms. Depending on an extra-large heat pump system and intelligent water circulation technology, this system settles traditional commercial hot water equipment's defects,such as high energy consumption and unstable supply and coming true the core functions of "big capacity and rapid water production + stable and constant temperature delivery + low-energy and high-efficiency operation”.
Product Advantages: Four Core Highlights
1. Highly efficient and energy-saving to reduce costs by 50%
Low energy consumption and high output
Take advantage of the remaining heat recycle
2. Stable and reliable to provide ongoing 24/7 supply
Different temperature applied
Large capacity and continuous output
3. Safe and environmentally friendly to meet commercial compliance requirements
0 safety risks
Environmentally friendly
4. Intelligent and convenient to rise management efficiency by 80%
Remote intelligent control
Data-driven operations
Easy-maintenance design
Application Scenes: Covering All Industries and Meeting Diverse Commercial Requirements
1. Hotels/Home-stays: Improve the customers’ experience
Application scenes: Hotels, home-stays and resorts with 50-500 rooms
2. Schools/Hospitals: Ensure centralizedly safe water supply
Application scenes: Primary and secondary schools, university dormitories, comprehensive hospitals and community hospitals
3. Gyms/Swimming Pools: Meet high-frequency water usage requirements
4. Factories/Enterprises: Reduce workers’ welfare costs
Application scenes: Large factory’s dormitories and office buildings
The durability of commercial equipment directly determines the user's investment profit period. TENESUN commercial water heaters heat pump has focused on the long-term stable operation in material selection and structural design. In terms of system protection, the facilities are equipped with multiple safety protection devices: high-pressure protection, low-pressure protection, over-temperature protection, water flow protection, leakage protection and other 12 kinds of protection functions. They can monitor the operating status in real time, immediately shutting down and sending alarms in the event of any abnormality, minimizing the risk of equipment damage. The facility’s shell adopts cold-rolled steel plate with a powder coating craft, possessing resistance to ultraviolet rays and acid rain corrosion, allowing for a long-term stable operation in the hot and humid tropical regions or high-salt-fog coastal areas.
Third-party testing data is shown that TENESUN commercial water heaters heat pumps have a average time without breakdowns (MTBF) beyond 8000 hours and a service life beyond 20 years, extending the lifespan by more than 5 years compared to similar products in the industry. Taking a 20-ton pump as an example, the initial investment is about $80,000. Based on a 15-year service life, the average annual depreciation cost is only $5,300.But the service life of a traditional gas-fired water heater is about 8 years, with an average annual depreciation cost of $7,500. The long-term usage advantages are very significant.
Model: KFXRS- | 151Ⅱ/A | 200Ⅱ/A | 240Ⅱ/A | |
Ambient Temp:20℃ | ||||
Heating Capacity | kW | 151.6 | 200.0 | 240.0 |
Heating Power Input | kW | 32.60 | 42.90 | 51.50 |
COP | W/W | 4.65 | 4.66 | 4.66 |
Ambient Temp:7℃ | ||||
Heating Capacity | kW | 120.0 | 165.0 | 185.0 |
Heating Power Input | kW | 30.50 | 42.00 | 47.00 |
COP | W/W | 3.93 | 3.93 | 3.94 |
AHPF | 3.83 | 3.95 | 3.62 | |
Power Supply | 380V 3N~50Hz | |||
Max. Power Input/Current | kW/A | 59.0/108.0 | 72.7/130.0 | 87.9/150.0 |
Rated Water Flow | m3/h | 26.1 | 34.4 | 41.3 |
Water Pressure Drop | kPa | 75 | 90 | 145 |
Operation Ambient Temperature | ℃ | -15~45 | ||
Max Water Output Temperaure | ℃ | 60 | ||
Hot Water Capacity:20℃ | L/h | 3246 | 4299 | 5159 |
Hot Water Capacity:7℃ | L/h | 2243 | 3084 | 3458 |
Body size(L×W×H) | mm | 2400×1200×2265 | 2200×1100×2410 | 2400×1200×2260 |
Water-Proof Grade/Anti-Electric Shock Rate | IPX4/Ⅰ | |||
Noise | dB(A) | 70 | 72 | 72 |
Diameter of Pipe | mm | DN80 | DN100 | |
| Flange | ||||
Net Weight | kg | 1100 | 1400 | 1450 |
